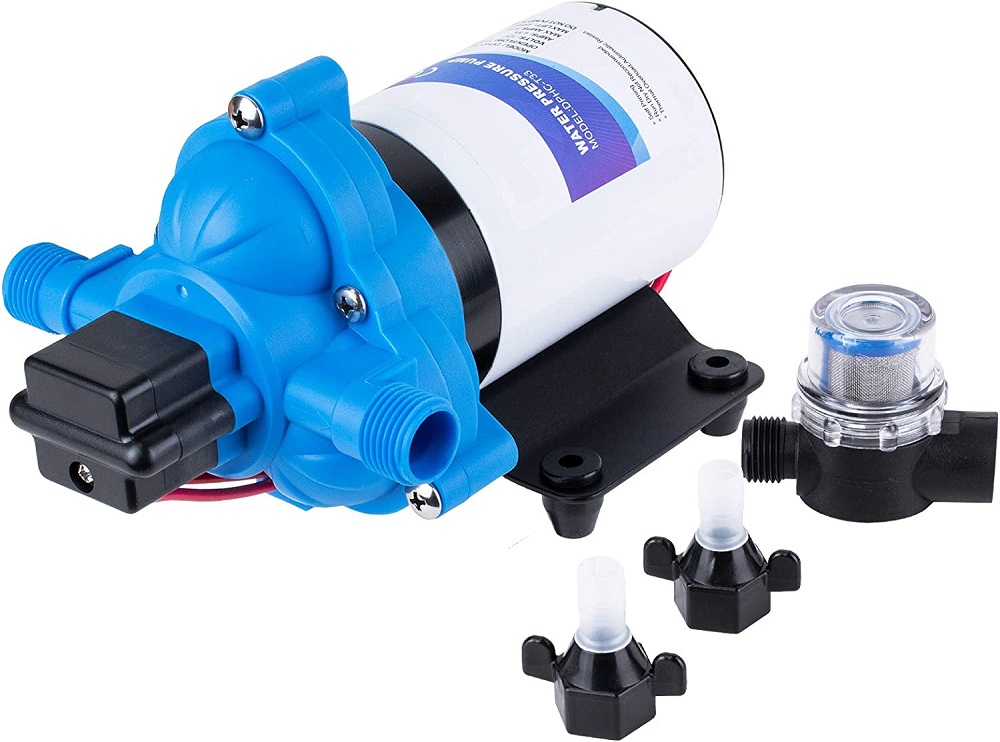

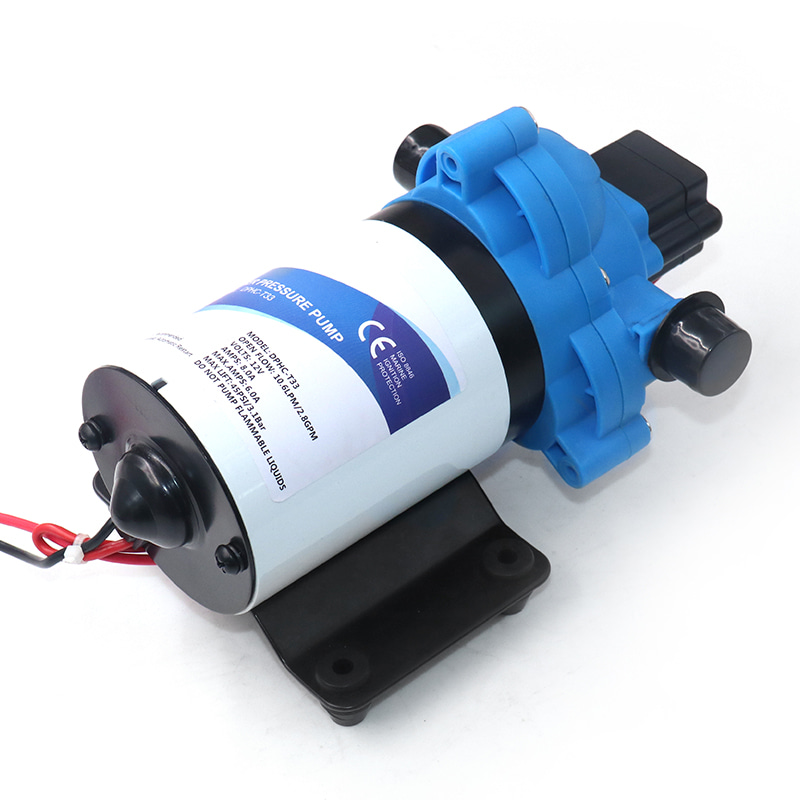

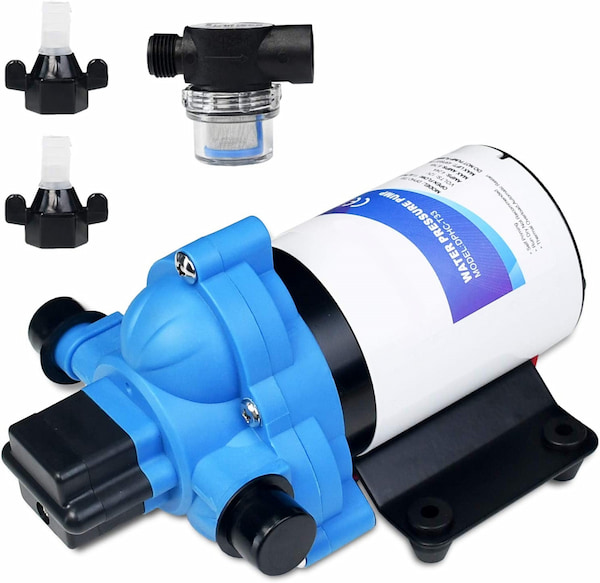

The F33 12V/24VDC self-priming diaphragm water pressure booster pump offers customizable options, delivering reliable self-priming performance and stable water pressure for industrial, agricultural, and commercial applications.
Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Voltage/Hz :
12V; 24V DCWarranty :
12 MonthsFlow :
2.0/ 2.8/ 3.0/ 3.3/ 3.5/ 4.0 GPMF33 12V/24VDC Self-priming Diaphragm Water Pressure Booster Pump
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F33-101-045 |
12V/24V |
2.0 |
7.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-101-045A |
12V/24V |
2.8 |
10.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045 |
12V/24V |
3.0 |
11.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045-A |
12V/24V |
3.3 |
12.5 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045-B |
12V/24V |
3.5 |
13.5 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-103-045 |
12V/24V |
4.0 |
15.0 L/Min |
45/3. 1 |
1.9/2.2 |

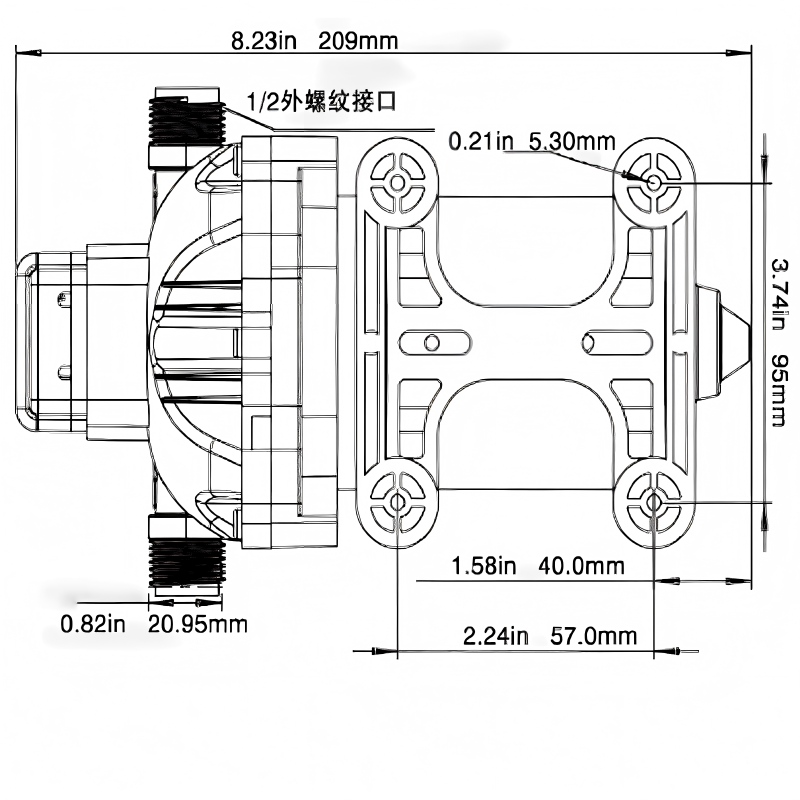

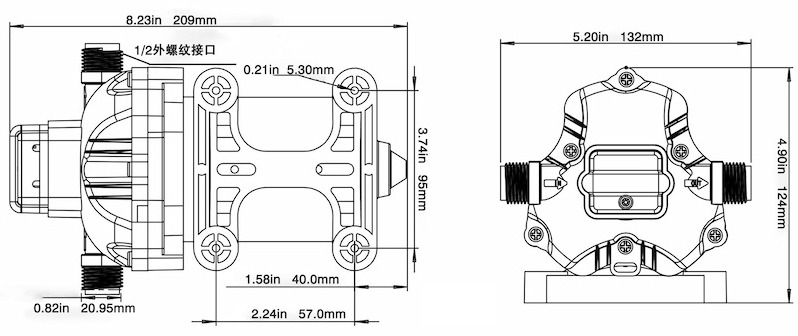

Dimension for 12v/24v Version
Product Features
This self-priming diaphragm water pressure booster pump can supply 2–3 fixtures and offers a customizable flow rate from 2.0 to 4.0 GPM. It is self-priming, supports on-demand use, and features an industry-standard mounting pattern with a fully rubber mounting base for reduced vibration. The adjustable pressure switch allows precise control, and the 16 AWG leads (4.5" / 11.4 cm) ensure easy electrical connection.
Usage Of The Pump
Packing Information
| Unit N.W/ G.W | 1.9 / 2.2 KG |
| Unit Box Size | 29.9*14.6*12.8 cm |
| Master Carton Size | 46*31*28 cm |
| Master Carton G.W | 13.9 KG |
We conduct comprehensive testing on every pump unit before shipment. Our products are CE certified, ensuring reliable performance. Welcome to order！
