The 115V or 230V AC F33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up 2.0 to 4.0 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage.

Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )
Voltage/Hz :
115V; 230V AC
Warranty :
12 Months
Flow :
2.0/ 2.8/ 3.0/ 3.3/ 3.5/ 4.0 GPM

Узнать сейчас

КАТЕГОРИИ ТОВАРОВ

Как мы можем вам помочь

Вы можете связаться с нами любым удобным для вас способом. Мы доступны 24/7 по электронной почте или телефону.

СВЯЖИТЕСЬ С НАМИ

новые продукты

информация о продукте

F33 AC 115V 230V RV Self-Priming Diaphragm Booster Water Circulating Transfer Pump

The AC version 115V or 230V Self-priming diaphragm pump is designed for the AV electric source, like home, garden, water supply or agricultural Irrigation. The constant flow rate from 2.0-4.0 with 3 chamber diaphragm pump's head, working low noise, and long life. We also accept the OEM customized order, like color, sticker, nameplate, and unit box.

Technical Data:

Model	Volt	GPM	LPM	(PSI/BAR)	N.W/G.W (KG)
F33-201-045	115V/230V	2.8	10.6 L/Min	45/3. 1	2.4/2.7
F33-202-045	115V/230V	3.0	11.6 L/Min	45/3. 1	2.4/2.7
F33-202-045-A	115V/230V	3.3	12.5 L/Min	45/3. 1	2.4/2.7
F33-202-045-B	115V/230V	3.5	13.5 L/Min	45/3. 1	2.4/2.7
F33-203-045	115V/230V	4.0	15.0 L/Min	45/3. 1	2.4/2.7

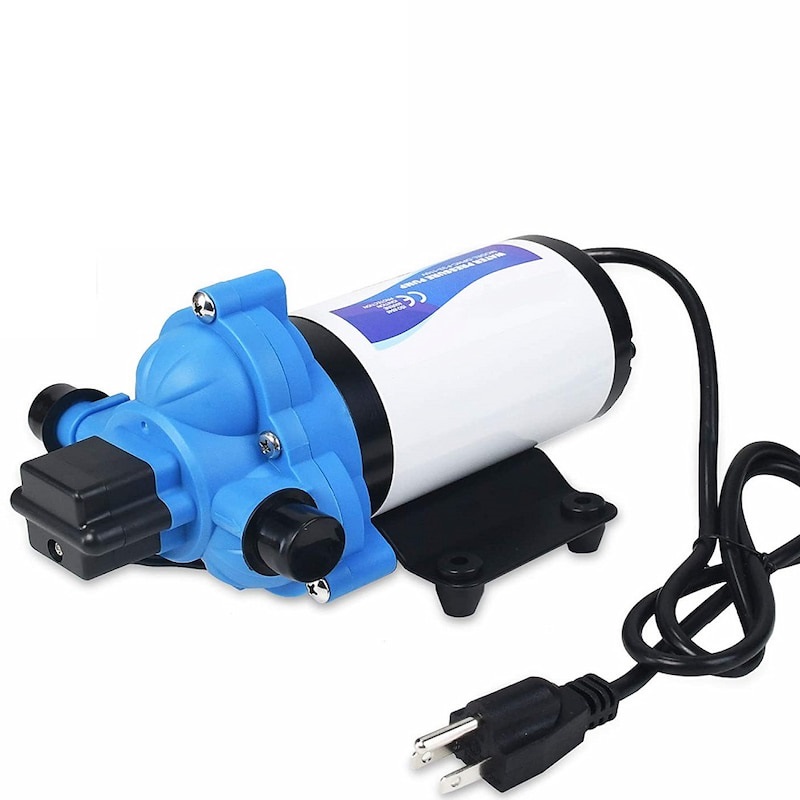

Product Features:

115v diaphragm pump

1. The water system pump is capable of supplying 2-3 fixtures

2. Constant flow rate could be customized from 2.0 to 4.0 GPM

3. Self-priming

4. On-demand use

5. Industry Standard mounting pattern

6. Completely rubber mounting-base

7. Adjustable pressure switch

8.16 AWG, 4.5"(11.4 cm) long Leads

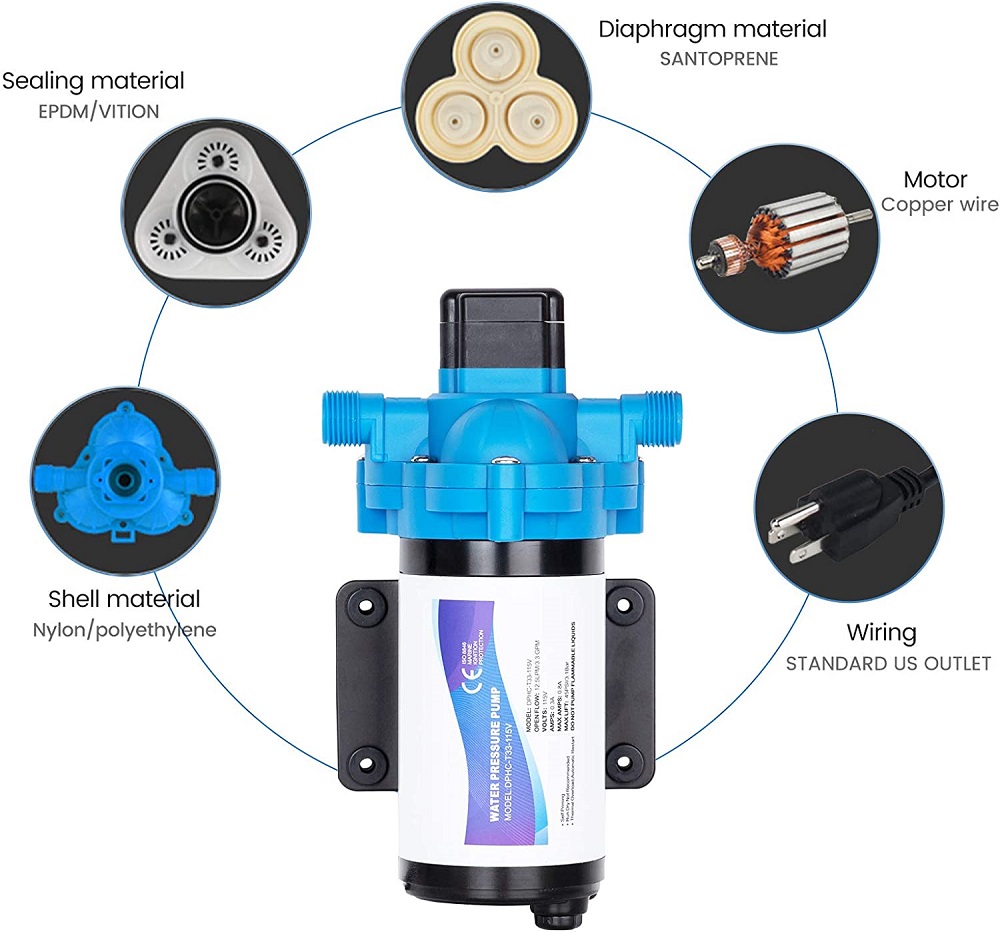

High-Quality Spare Parts:

1. We use SANTOPRENE material for the dipahragm

2, Sealing material could be EPDM or VITION

3, The diaphragm pump's shell is made of nylon or Polyethylene

4, Full copper wire motor

5, Standard US, UK, EU plug

4.0gpm diaphragm pump

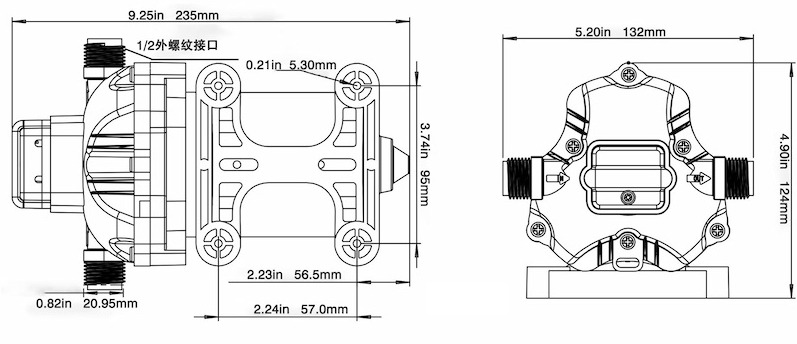

Dimension:

dimesion for F33-115V diaphragm pump

Usage:

The pump could be widely using for RV, Boat, Water supply, Irrigation

usage for f33 diaphragm pump

Packing Information:

Unit N.W/ G.W	2.4/2.7KG
Unit Box Size	29.914.612.8 cm
Master Carton Size	4532.529 cm
Master Carton G.W	16.5KG
