With 120W powerful motor, the DP-70 High Pressure Electric Diaphragm Water Pump is built by 5 chamber diaphragm, it can provide max flow rate by 19LPM /5GPM
Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Voltage/Hz :
12V; 24V DCWarranty :
12 MonthsFlow :
16LPM / 24VMOQ Order :
10PCS120W DC High Pressure Electric Diaphragm Water Pump DP-70
The DP70 electric diaphragm pump is Lightweight and Portable: Easy to store and haul, this mini utility pump offers big value in a little package
Multipurpose: Perfect for transferring water from aquariums, washing machines, water beds, water heaters, clogged sinks, and more. Can be used home, garden, caravan, camper, marine.
Low power consumption: with 100% cooper wire motor and good bearing, the pump working stability and low noise
|
Model |
Voltage(V) |
Current(A) |
Max Flow(GPM) |
Max Flow(LPM) |
Max. Pressure(PSI) |
Max. Pressure(MPA) |
Speed(RPM) |
Suction(M) |
|
DP-70 |
12 |
13.0 |
5 |
19 |
70 |
0.48 |
1800 |
5 |
|
DP-70 |
24 |
6.5 |
5 |
19 |
70 |
0.48 |
1800 |
5 |
· PUMP FLOW RATE AND POWER:DP-70 RV water pump power by 120w DC motor, delivering a high flow rate of up to 19LPM/5.0GPM. It includes an adjustable pressure switch by 70 PSI, self-priming up to 5Mg up to 155 feet
· SAFE AND DURABILITY: This DC 12v water pump is built with integrated thermal and run-dry protection to prevent damage if it runs without water. The built-in pressure switch offers reliable, automatic start/stop functionality—eliminating the need to manually turn the pump on and off. Plus, the cleanable strainer helps keep debris out, reducing the risk of damage and extending pump life.
· LOW NOISE DESIGN: This transfer pump features premium famous brand ball bearings and a unique one-piece 5-chamber diaphragm design, ensuring ultra-quiet operation without sacrificing high flow performance
·
· SERVICE COMMITMENT: CE-certified for quality and safety, this water pump is built from premium materials and undergoes strict quality control. It comes with a 1-year manufacturer and 24/7 customer support.
NOTE : The 12v dc water pump may contact liquid from factory testing. This is the normal quality assurance process for products in a factory.
Material list of pump:
Pump Shell- FRPP or Nylon
Inhaled diaphragm- EPDM (Or could be customized by FKM, VITON)
O-ring- EPDM (Or could be customized by FKM, VITON)
Diversion plate- FRPP
Piston button -FRPP
Button screws- 304 stainless steel
Diaphragm- - TPV
Inlet/outlet ： DN15 external thread

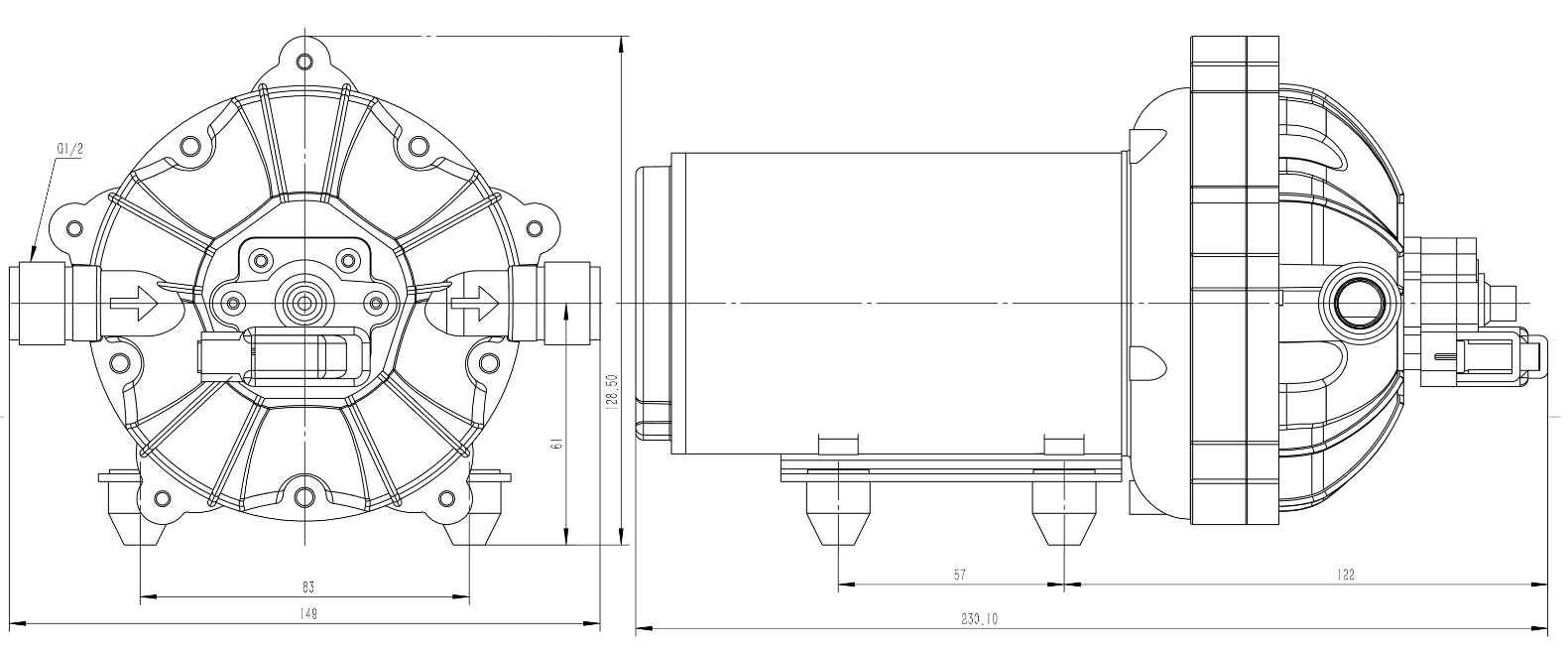

Dimension:
Usage:
Our DC diaphragm pump is widely using for Carr washing, Road Roller, Water heater pressurization, Sweeping Machine, Water supplier for RV, Boat, Water supply and Irrigation
| Unit N.W/ G.W | 2.9/ 3.3 KG |
| Unit Box Size | 23 x 10 x 12 cm |
| Master Carton Size | 51 x 24 x 24cm |
| Qty/Carton | 10Pcs |
| Master Carton G.W | 33 KG |
