DP Series 3 Chamber 12v 24v High Pressure Diaphragm Pump
DP Series 3 Chamber 12v 24v High Pressure Diaphragm Pump
DP Series 3 Chamber 12v 24v High Pressure Diaphragm Pump

DP Series 3 Chamber 12v 24v High Pressure Diaphragm Pump

DDP series diaphragm pump adopts a 12V Or 24V permanent DC electric machine. Customers are forbidden to use a 220V power supply. If directly plugged into a 220V power supply. The electric machine will burn at once. If customers haven't systemic transformer equipment, you can purchase the applicable transformer to make the diaphragm pump operate normally.

  • Customized Service :

    Yes ( Color of pump; Logo; Unit box/ User manual )

  • Voltage/Hz :

    12V; 24V DC

  • Warranty :

    12 Months

  • Flow :

    1.3 GPM/ 5LPM

  • MOQ Order :

    10PCS
Узнать сейчас

DP Series 3 Chamber 12v 24v High-Pressure Diaphragm Pump



DP Series high-pressure diaphragm pump with a 12V or 24V DC version, with 3 chamber diaphragm design, makes the pumps work stably. The DP-60, DP-100, DP-125, DP-130, DP-150 pressure sets range from 60,100, 125,130, 150PSI on different flow rates. The DC pump could be customized for the flow rate or pressure for special design.



Product Features:

Easily fitted and removed

Excellent self-suction capability

Low noise, excellent corrosion resistance

Pump controlled automatically by pressure switch

Medium liquid temperature up to 60 degree

Note: The pump can transport water, weak acid, alkali and salt, etc. liquid, but can’t transport liquid with grain gasoline and other inflammable liquids.

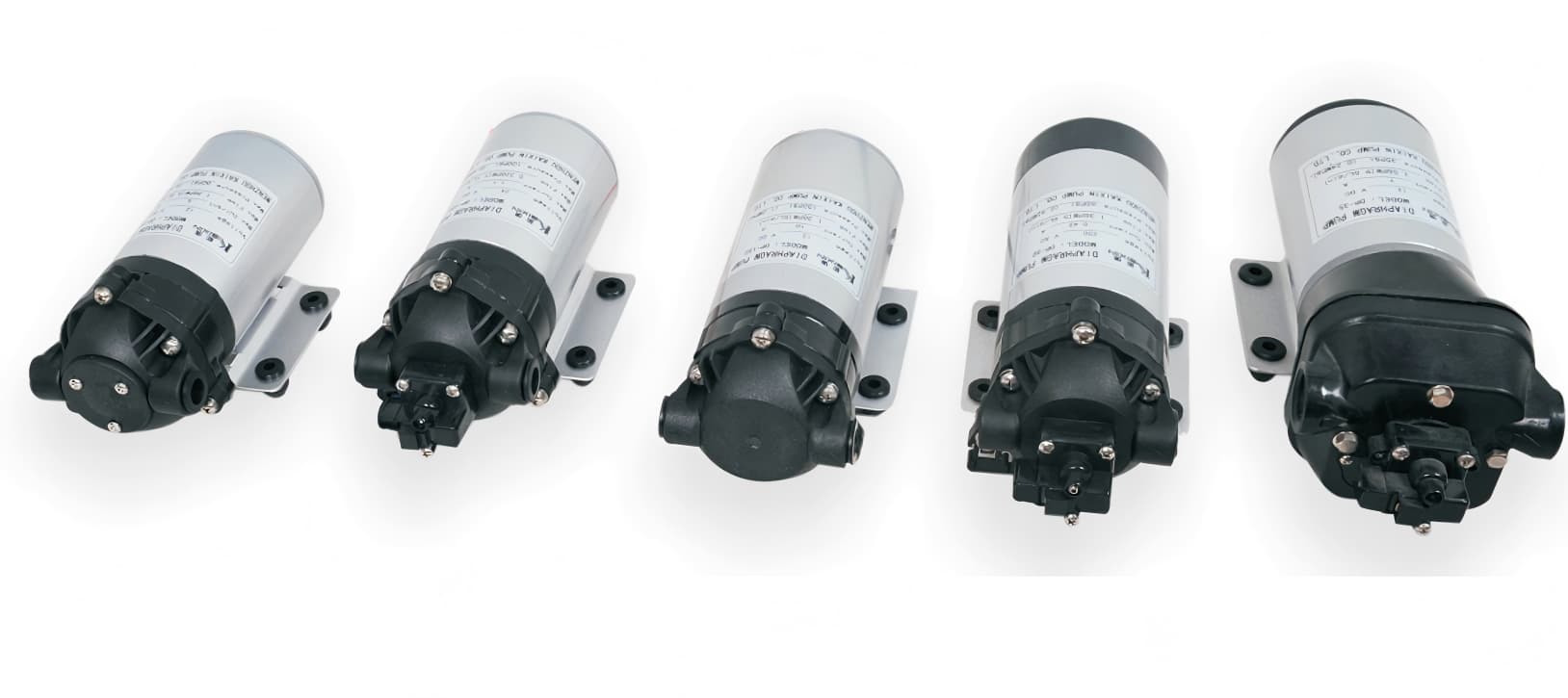

dp series diaphragm pump



Technical Data:

Model

Voltage (V)

Current (A)

Max Flow (GPM)

Max Flow (LPM)

Max. Pressure (PSI)

Max. Pressure (MPA)

Speed (RPM)

Suction (M)

DP-60

12

6.0

1.3

5

60

0.42

1200

5

DP-60

24

3.0

1.3

5

60

0.42

1200

5

DP-100

24

1.1

0.32

1.2

100

0.68

375

5

DP-125

24

1.0

0.26

1

125

0.86

375

5

DP-130

12

2.2

0.45

1.7

130

0.90

470

5

DP-130

24

1.2

0.45

1.7

130

0.90

470

5

DP-150

12

6.5

1.4

5.3

150

1.00

1200

5

DP-150

24

4.0

1.4

5.3

150

1.00

1200

5



High-Quality Material:

. The pump's head is made of casting nylon 66 glass fiber reinforced polypropylene.

. Pure Copper Wire Motor

. Standard Pressure Switch

. 3/8" Internal Thread

. 6-8mm PU high-pressure tube connector

. Rubber Buffer

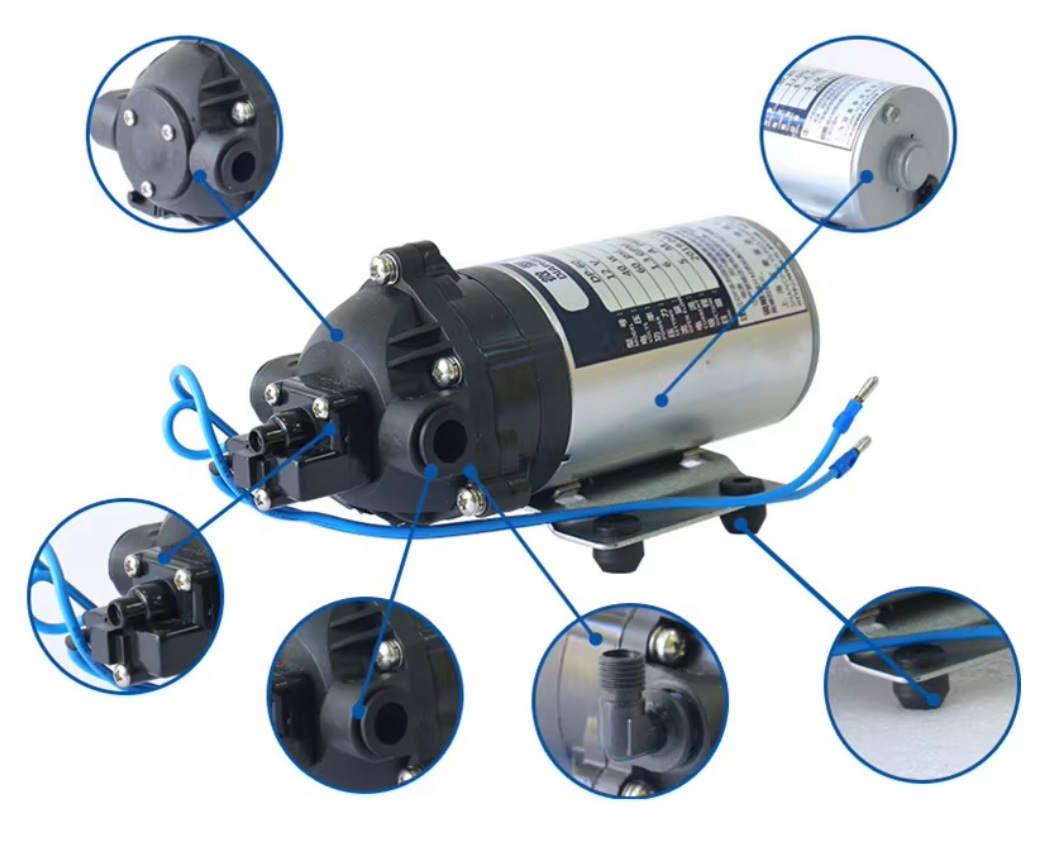

dp diaphragm pump spare parts



Dimension:

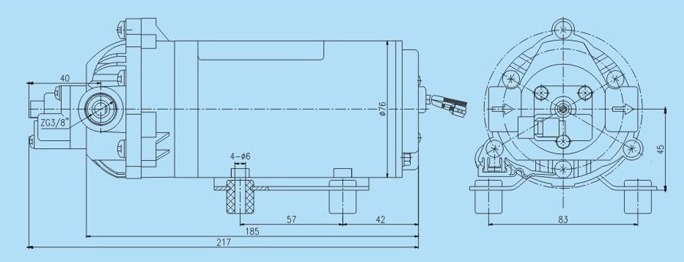

DP diaphragm pump Dimension





Usage:

Our DP diaphragm pump could be using for:

Car washing

Road roller

Water heater pressurization

Sweeping machine

Water Supply for RV Boat

Printing industry

usage for DP diaphragm pump



Packing Information:

Unit N.W/ G.W 2.9/ 3.1 KG
Unit Box Size 23 x 10 x 12 cm
Master Carton Size 51 x 24 x 24cm
Qty/Carton 10Pcs
Master Carton G.W 31 KG
