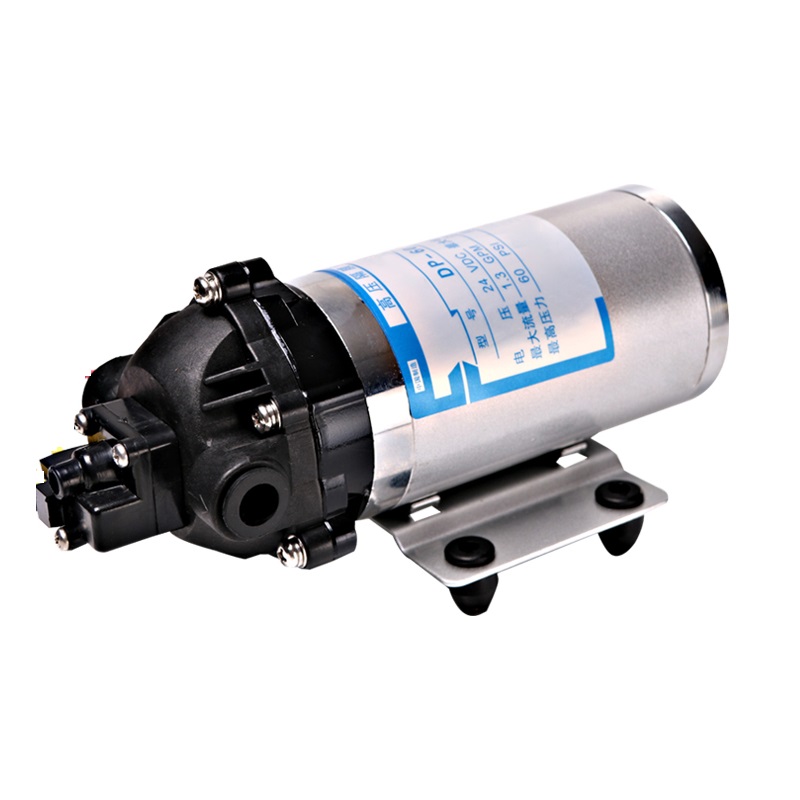

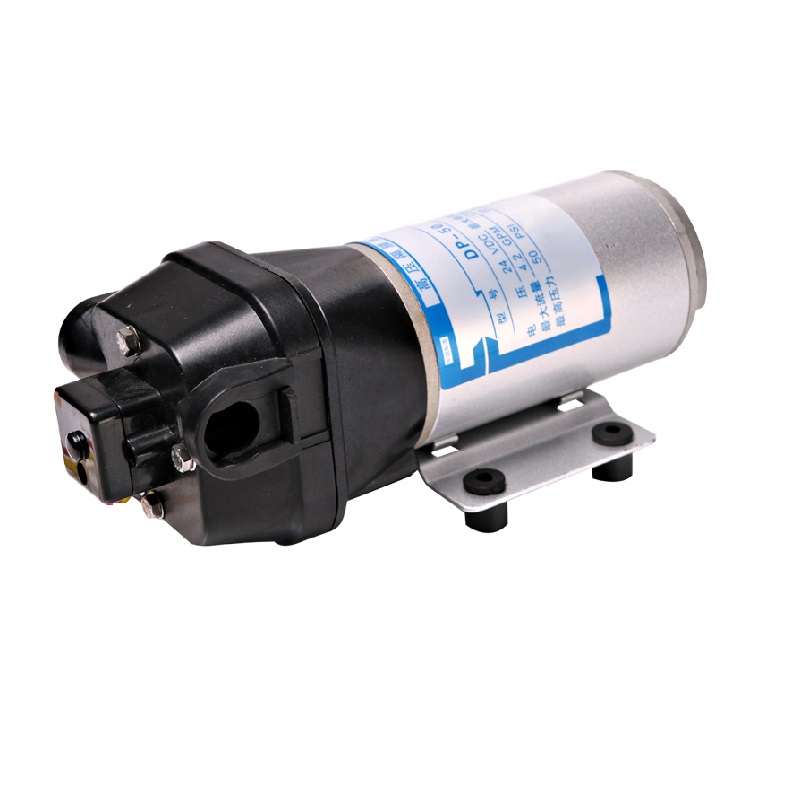

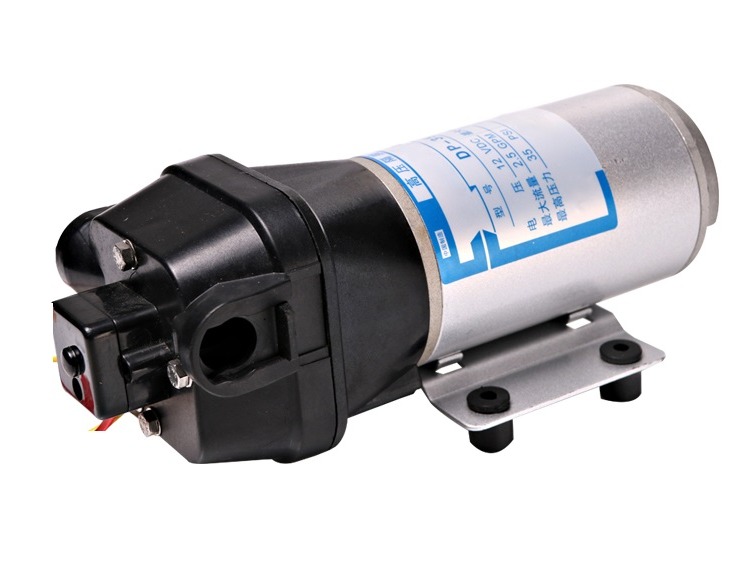

35Psi 50Psi High Flow Self-Priming DC Diaphragm Water Pump
DP35/DP50 Series High-Pressure Diaphragm Pump: Engineered to meet the demand for high-flow performance, the DP35 and DP50 Series high-pressure diaphragm pumps feature a robust, streamlined design powered by a high-quality motor. The pump head is equipped with premium EPDM or FKM/Viton membranes, ensuring compatibility with a wide range of liquids and chemical solutions.
We are committed to delivering high-quality, safe, and reliable products backed by full-service support. As a direct manufacturer, we offer these pumps as a cost-effective solution without compromising on quality.
Technical Data:
| Model |
Voltage(V) |
Current(A) |
Max Flow(GPM) |
Max Flow(LPM) |
Max. Pressure(PSI) |
Max. Pressure(MPA) |
Speed(RPM) |
Suction(M) |
| DP-35 |
12 |
7 |
2.5 |
9.5 |
35 |
0.24 |
1200 |
5
|
| DP-35 |
24 |
4.8 |
3.2 |
12 |
35 |
0.24 |
1300 |
5
|
|
DP-50
|
12 |
12 |
4.2 |
16 |
50
|
0.35 |
1500 |
5 |
| DP-50 |
24 |
6 |
4.2 |
16 |
50 |
0.35 |
1800 |
5
|
Product Features:
1. Easily fitted and removed;
2. Excellent self-suction capability;
3. Pump controlled automatically by built-in pressure switch;
4. Permissible liquid temperature up to 60C
5. Dry operation is permissible; self-suction height is 5 m;
6. Low noise, excellent corrosion resistance, high pressure.

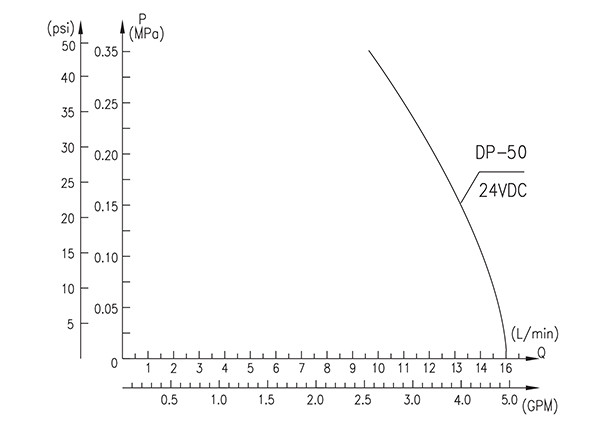

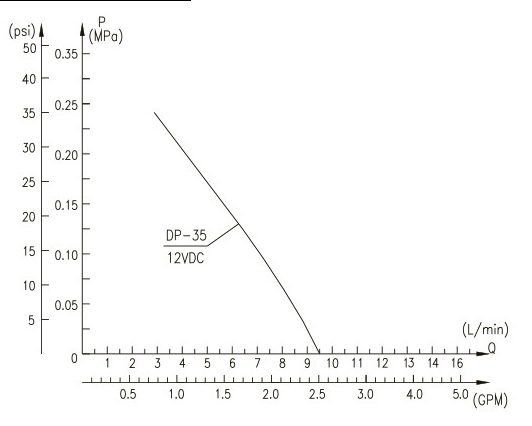

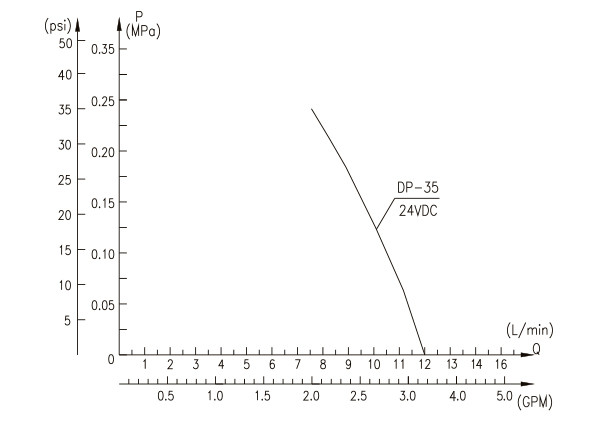

Performance Curve:

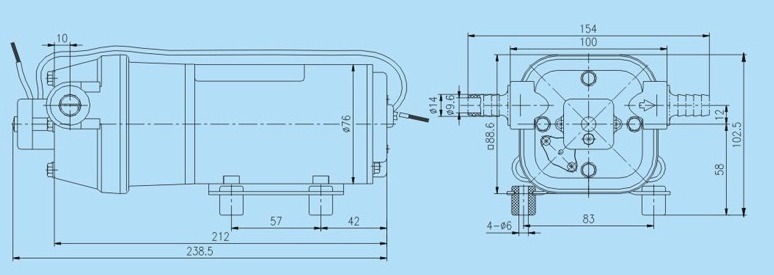

Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply, Irrigation, etc..
Packing Information:
| Unit N.W/ G.W |
2.9/3.3KG |
| Unit Box Size |
23 x 10 x 12 cm |
| Master Carton Size |
51 x 24 x 24cm |
| Qty/Carton |
10Pcs |
| Master Carton G.W |
33 KG |
