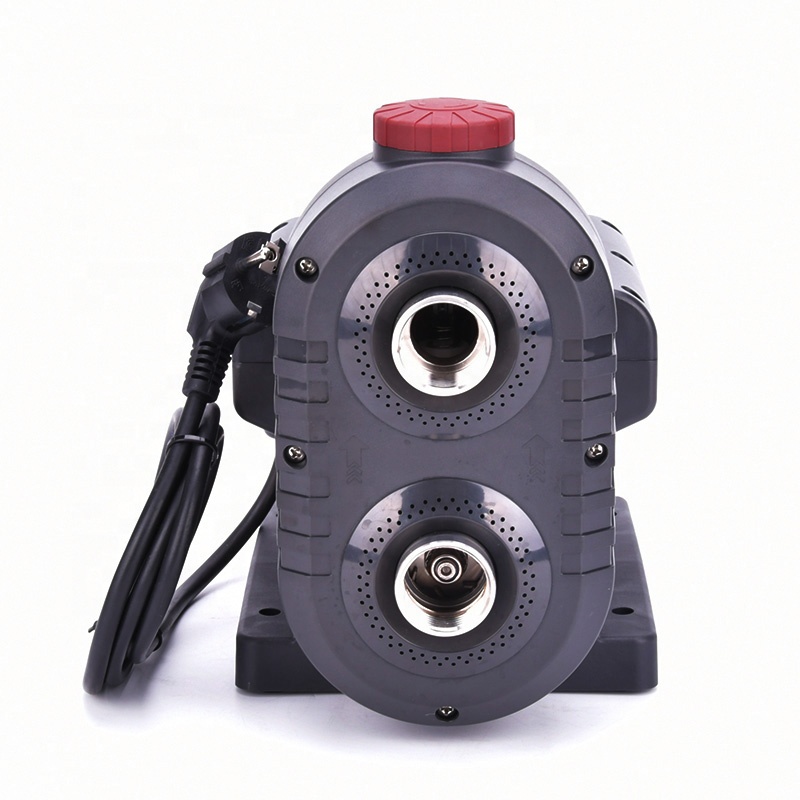

Intelligent Booster Permanent Magnetic Variable Frequency Inverter Pump APF Series
The APF Series permanent magnet variable frequency pump is a small water supply system; it is suitable for boosting household pipes. The inverter pump could be supply water for garden, hotel or high building as well. With a completely enclosed design, the working by low voice. With standard 220v Ac single phase voltage; and customized by 110v AC. Due to the Variable frequency design, the Hz could be 50 or 60Hz. it is very friendly for different market.
Technical Data:
|
Model
|
Voltage
|
Power
|
Speed
|
Flow (m3/h)
|
Head (m)
|
Inlet/Outlet
|
|
V/HZ
|
KW
|
HP
|
RPM
|
Max.
|
Rated
|
Max.
|
Rated
|
|
APF204
|
220V, 50/60HZ
|
0.55
|
0.75
|
4300
|
4.5
|
2
|
31
|
22
|
G1"
|
|
APF204H
|
220V, 50/60HZ
|
0.65
|
0.87
|
5000
|
4.8
|
2
|
41
|
31
|
G1"
|
|
APF204H
|
110V/60HZ
|
0.65
|
0.87
|
5000
|
4.8
|
2
|
40
|
31
|
G1"
|
Note: the APF series could be customized by 110 V version voltage; please mention it in the inquiry before ordering.
High-Quality Materials:
PMSM( Permanent magnetic motor); ABS casing;
Stainless-steel pump body; SS304 welded shaft;
SS304 impeller; environmentally friendly nylon pump housing,
Silicon carbide to graphite mechanical seal; Sensata pressure sensor
IP54
Operating Condition:
Liquid temperature: High temperature (0℃~+100℃)
Environment temperature:≤40℃
Product Features:
The APF series smart water pump is widely suitable for:
1. Housing and Villa water supply systems
2. Residents center water supply systems
3. Cold water circulation systems
4. Industrial water circulation systems
5. Cooling water systems

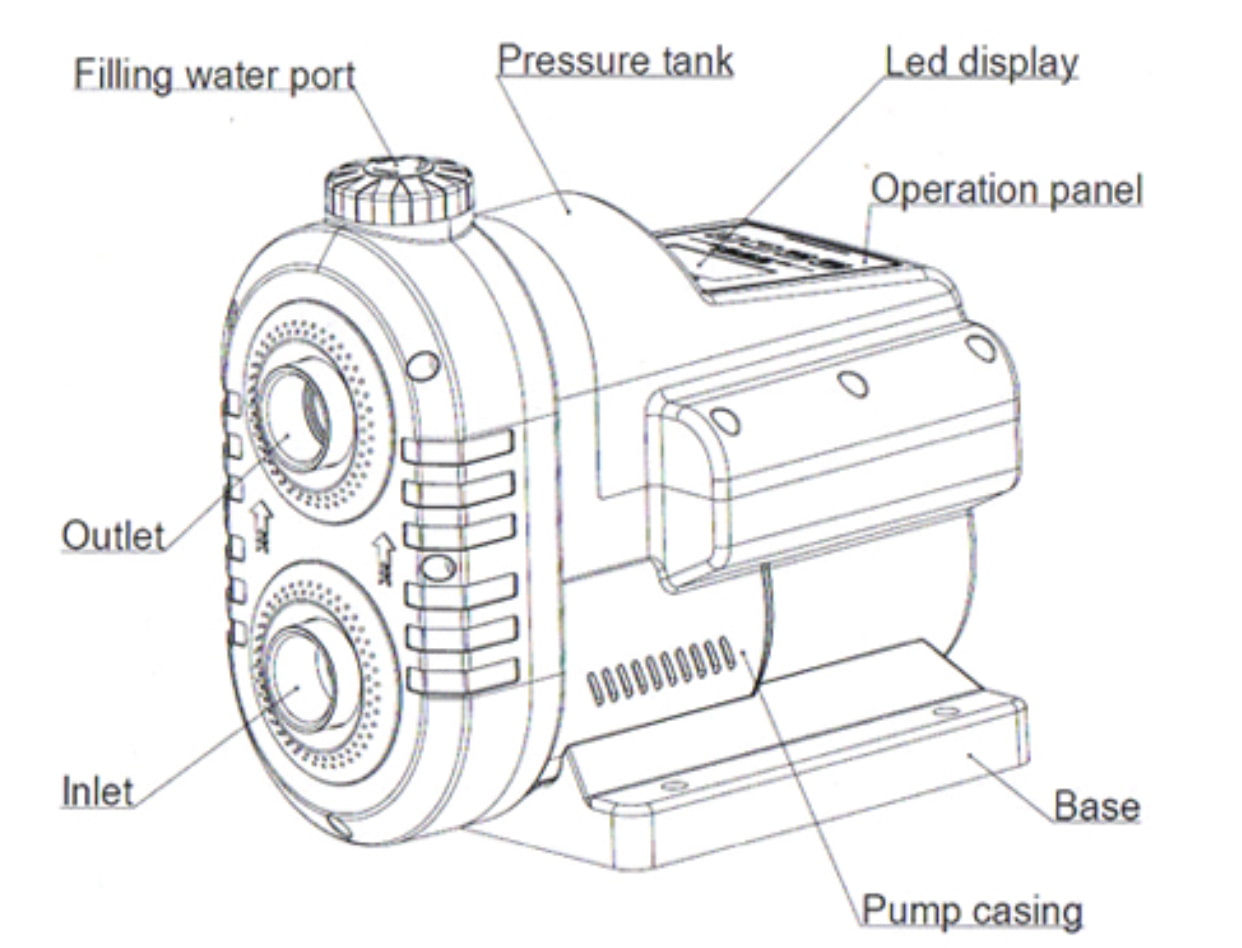

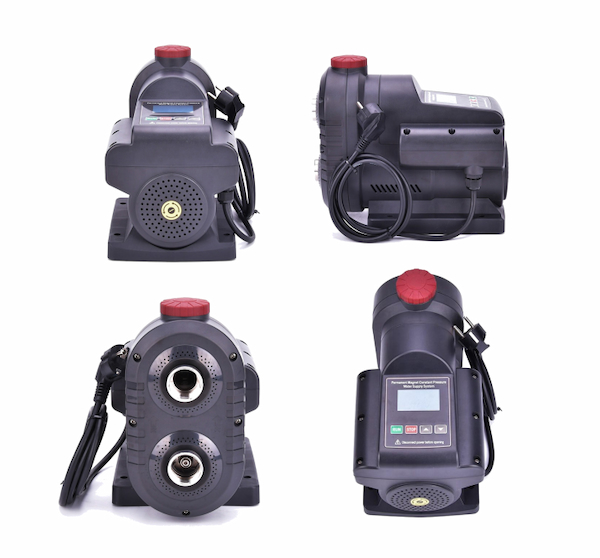

Details of Pump:

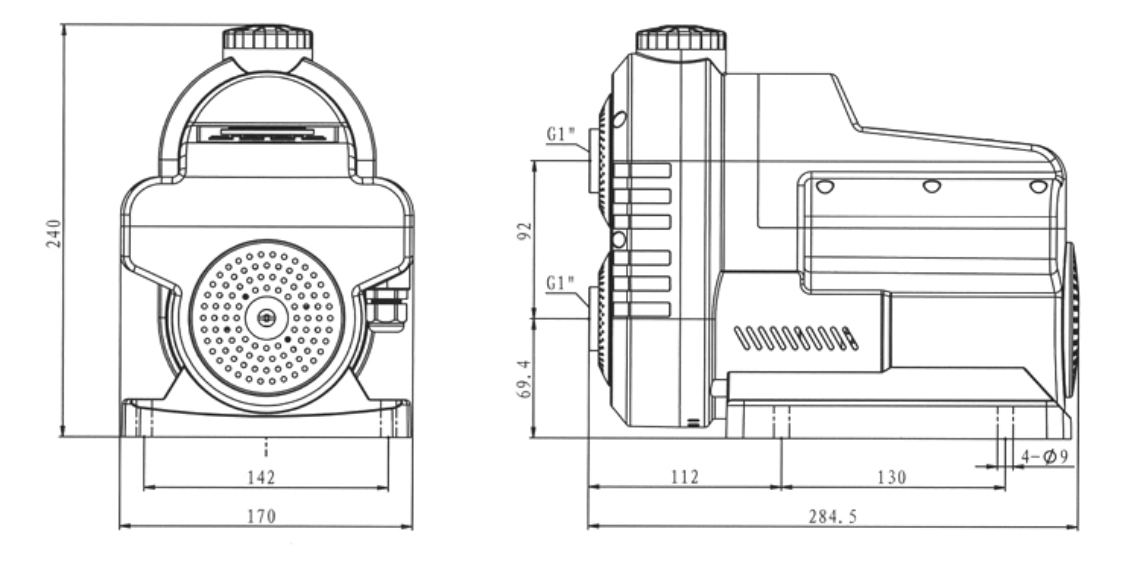

Dimension:
WHY CHOOSE OUR PUMPS?

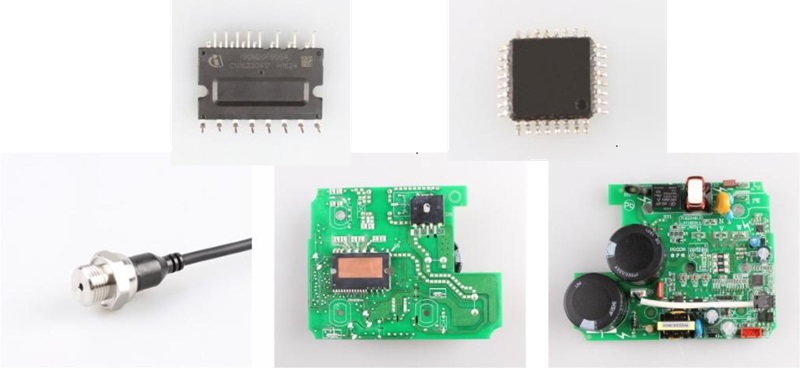

With Sensata pressure sensor Multi-parameter monitoring with 8 embedded IoT sensors (flow rate, pressure, temperature, vibration) achieving ±0.8% measurement accuracy

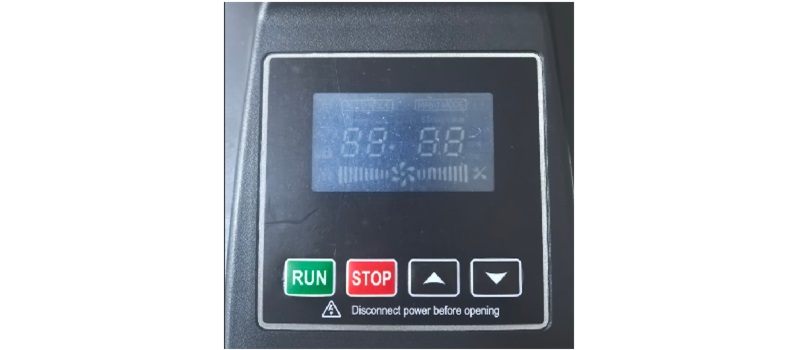

Full LED display
The drive system includes an LED-based display panel that allows users to monitor and control the motor’s operation

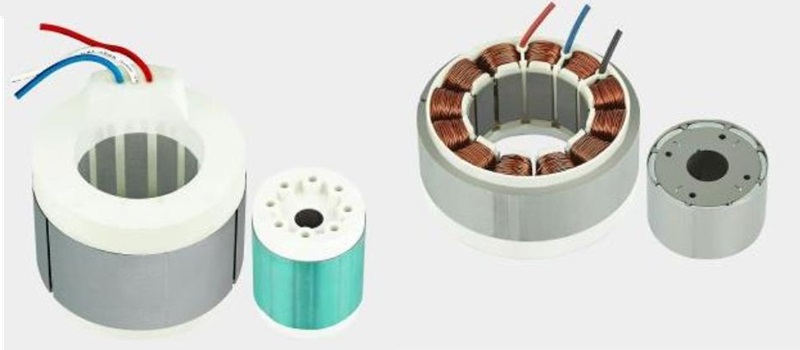

High-Efficiency Inverter Motor
The APF pump uses a high-speed permanent magnet inverter motor for excellent efficiency and low noise. The sealed stator and rotor prevent short circuits even if water enters the motor.
Our Certificates
Each pump will be tested by our QC department before shipment and complies with CE standards. Please feel free to talk to us for more information.
