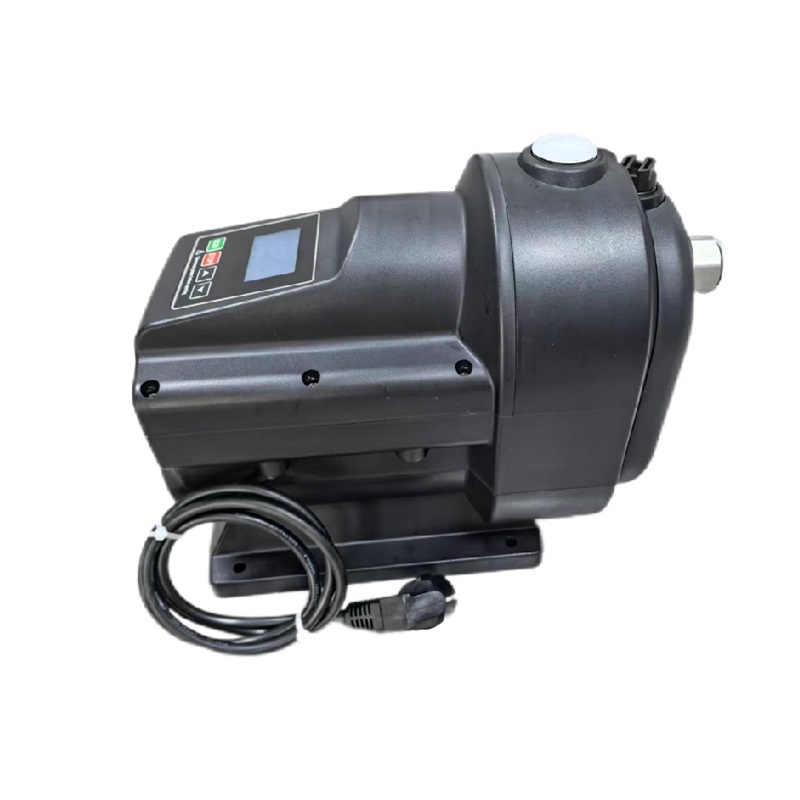

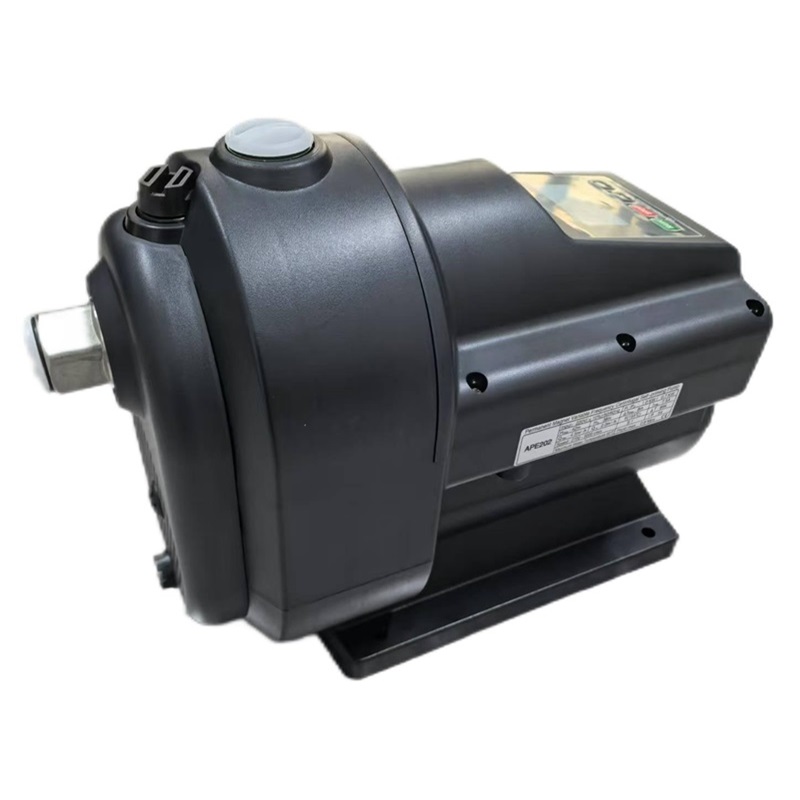

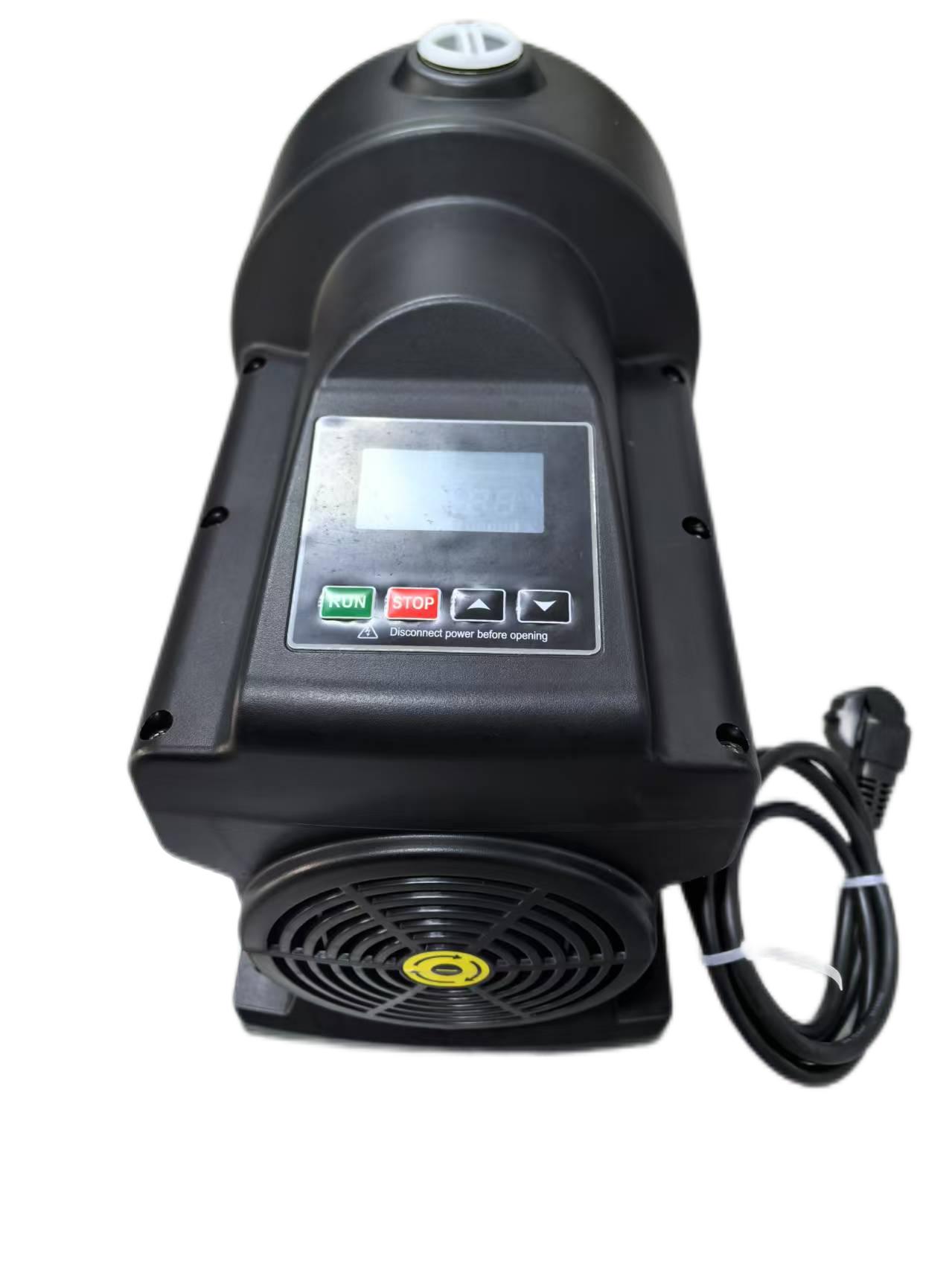

Self-Priming Permanent Magnetic Variable Frequency Drive Water Pump APE Series
The APE Permanent Magnetic Variable Frequency Drive Water Pump is designed for high-pressure applications, suitable for family homes and boosting clean water supply. The smart and silent design, It features a totally enclosed fan-cooled motor, multi-stage water pump structure, and diaphragm sealing material for reliable performance. With CE certification ensuring compliance with EU safety standards, it provides market access and peace of mind for buyers. Customized OEM and ODM support is available to meet specific requirements.
Technical Data:
|
Model
|
Voltage
|
Power
|
Max.Speed
|
Flow (m3/h)
|
Head (m)
|
Suction
|
Inlet/Outlet
|
Remark
|
|
V
|
KW/HP
|
RPM
|
Max.
|
Rated
|
Max.
|
Rated
|
m
|
|
APE202
|
220V 50/60HZ
|
0.7/1.0
|
5000
|
4.5
|
3
|
30
|
42
|
8
|
G1"
|
Impeller : PPO
|
Materials:
PMSM ( Permanent magnetic motor); ABS casing
SS304 welded shaft; environmentally friendly nylon pump housing
PPO impeller/diffuser; Silicon carbide to graphite mechanical seal
Sensata pressure sensor; Stainless steel temperature sensor,
Plastic magnetic flow meter; IP54
Operating Condition:
Liquid temperature: High temperature (0℃~+100℃)
Environment temperature:≤40℃
Product Features:
The APE smart water pump features a plug-and-play design, making installation simple and efficient even for first-time users. It comes pre-wired and factory-tested,with standard UK, EU, US plug for different market;
Total enclosed design makes the pump working by lower noise level, it can be install at home, hotel, or in a commercial area which request the low DB level.
The self-priming function makes the pumps work with a constant pressure control system designed for families to achieve complete,e constant water pressure

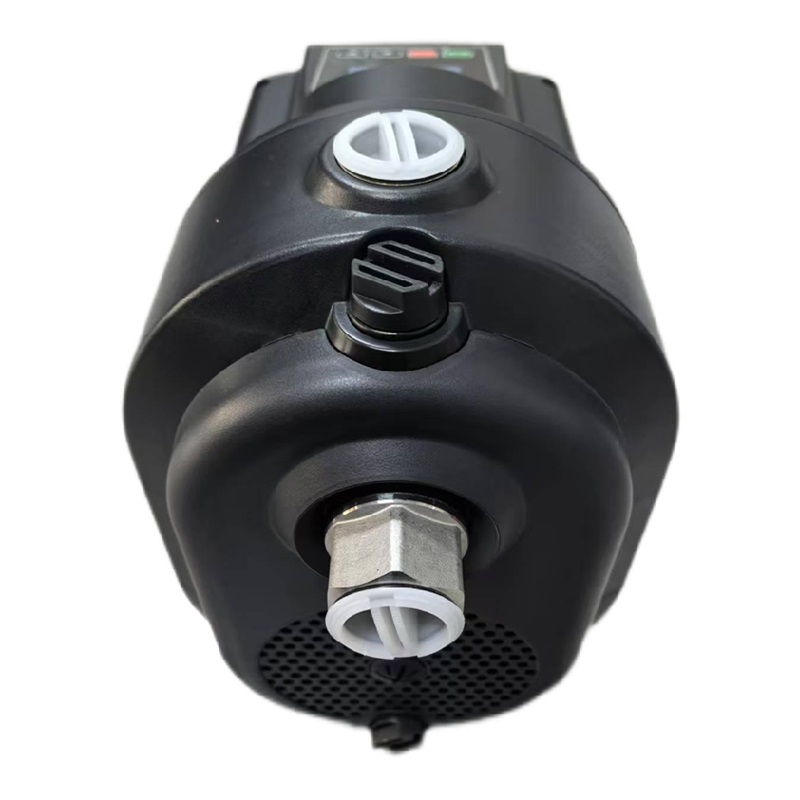

Detials Of Pump:

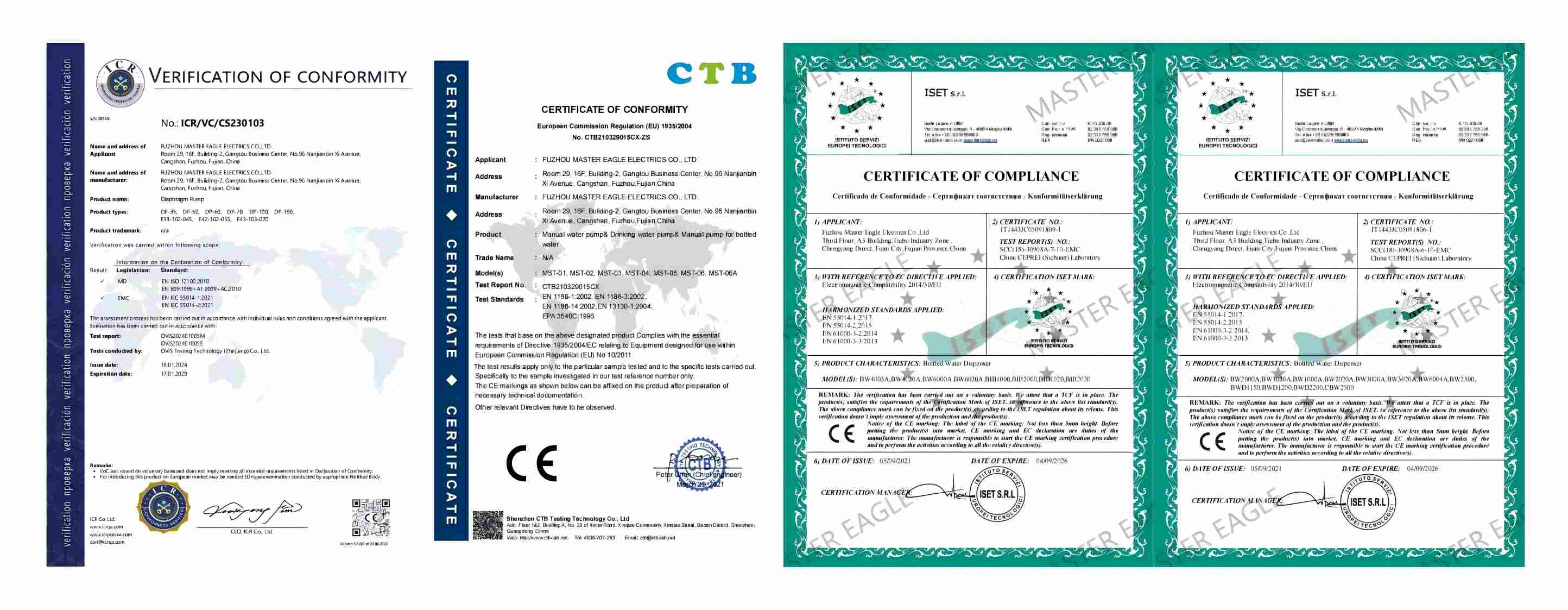

Our Certificates
Frequently Asked Questions
Q1: Is the APE pump easy to install?
A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.
Q2: What's the difference between an APE and APF pump?
A2: Yes, both models have very similar appearances, but the APE is self-priming pump with a variable frequency inverter design; the APF is normal inverter water pump, with SS 304 impeller, it is without the self-priming function.
Q3: Can I control the pump remotely?
A3: Yes, the pump will support smartphone APP control. It remains the port in the control panel; we will build the App soon.
Q4: How often does the pump need maintenance?
A5: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.
Q5: What is the MOQ of this model?
A5: The MOQ is 50 pcss of each model; The OEM MOQ is 300 pcs per model; we could accept customizing the nameplate, logo, user manual, and unit carton
