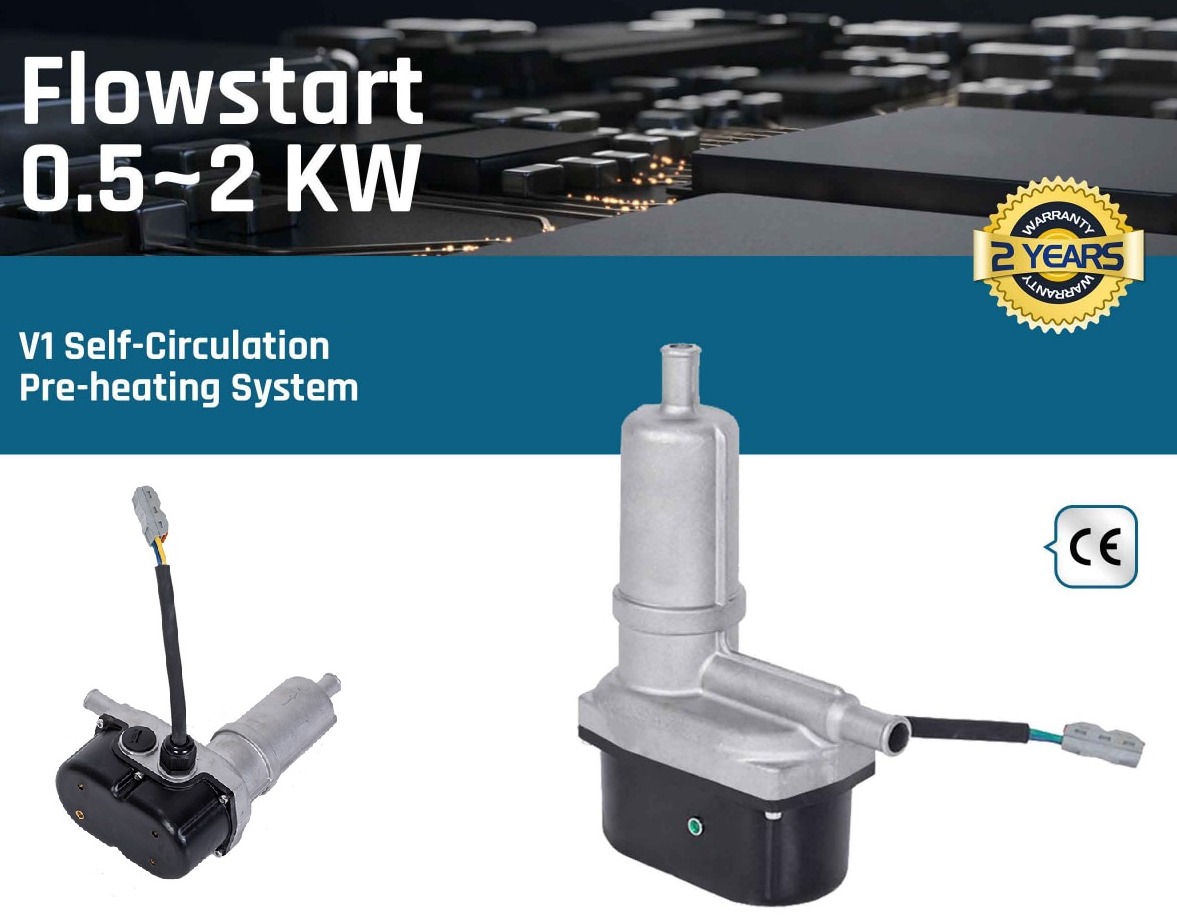

Custom Flowstart V1 Electric Coolant Heater Self-Circulation
A passive heating system based on natural convection that circulates coolant without a mechanical pump. Thermosiphon heaters are installed at the lowest point in a system, warm the coolant and thermal convection circulates the coolant within the system.
The V1 self-circulation pre-heating system is a self-circulating coolant heaters ensure dependable engine starts all year long. By circulating warmed coolant though the engine, it insures fast starts for critical applications, quick acceptance of loads, reduces fuel consumption, emissions and engine wear.
Products Features:
·Regulating Thermostat
35-50℃(95-122°F), 24-40℃(65-104°F)
·Safety thermostat 110℃(230F) for overheat protection
·Cast aluminum housing
·Robust aluminum body
·Compact design
·1.5m power cord
·Integrated mounting holes
BENEFITS
·Engine starts at full load
·Reduction of fuel consumption
·Reduces engine wear & stress on hoses &fittings
·Lower emissions during startup
APPLICATIONS
·Diesel Gensets
·Gas Gensets
. Industrial Engine Applications
Technical Data:
|
Model
|
Hz
|
Volts(V)
|
Phase
|
Watt
|
Regulating Thermostat
|
Safety Thermostat
|
Cord Length
|
Plug Type
|
Inlet/Outlet Diameter
|
|
LS 500R
|
50/60
|
230/115
|
1
|
500
|
35-50℃
|
110℃
|
1.5M
|
Blunt 3 Wire
|
5/8"(16mm)
|
|
LS 1000R
|
50/60
|
230/115
|
1
|
1000
|
35-50℃
|
110℃
|
1.5M
|
Blunt 3 Wire
|
5/8"(16mm)
|
|
LS 1500R
|
50/60
|
230/115
|
1
|
1500
|
35-50℃
|
110℃
|
1.5M
|
Blunt 3 Wire
|
5/8"(16mm)
|
|
LS 2000R
|
50/60
|
230/115
|
1
|
2000
|
35-50℃
|
110℃
|
1.5M
|
Blunt 3 Wire
|
5/8"(16mm)
|

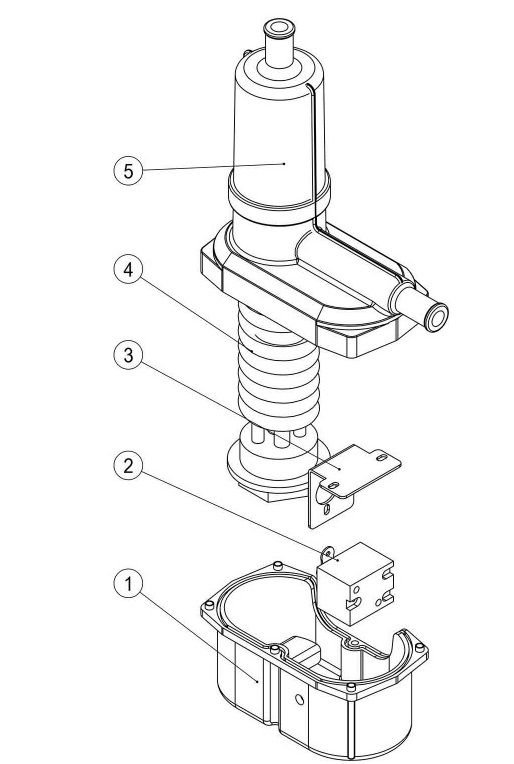

Explosion of V1 Self-Circulation Pre-heating System:
1. Electric box
2. Overheat safety thermostat
3. Fixing bracket
4. Heating element
5. Casting aluminum tank

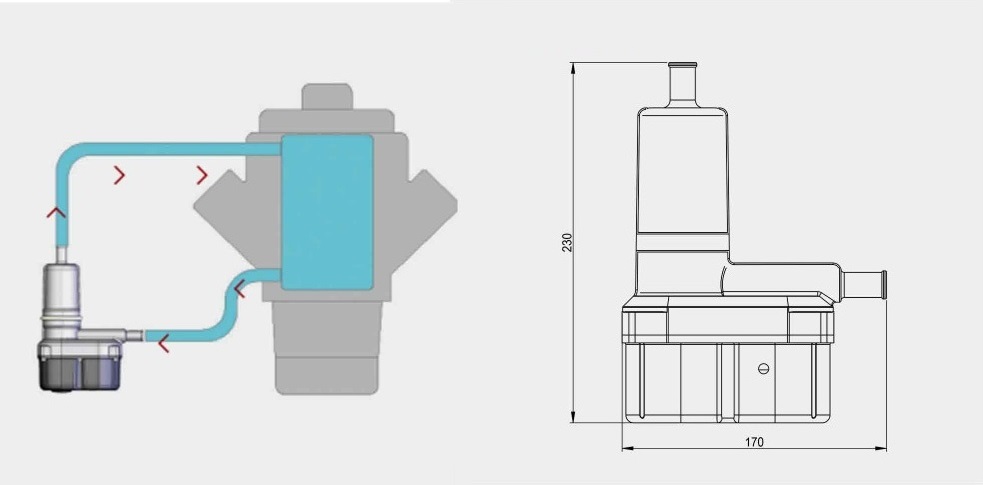

Installation and Dimension:
The Flowstart coolant heater pump is installed under the engine
